Описание

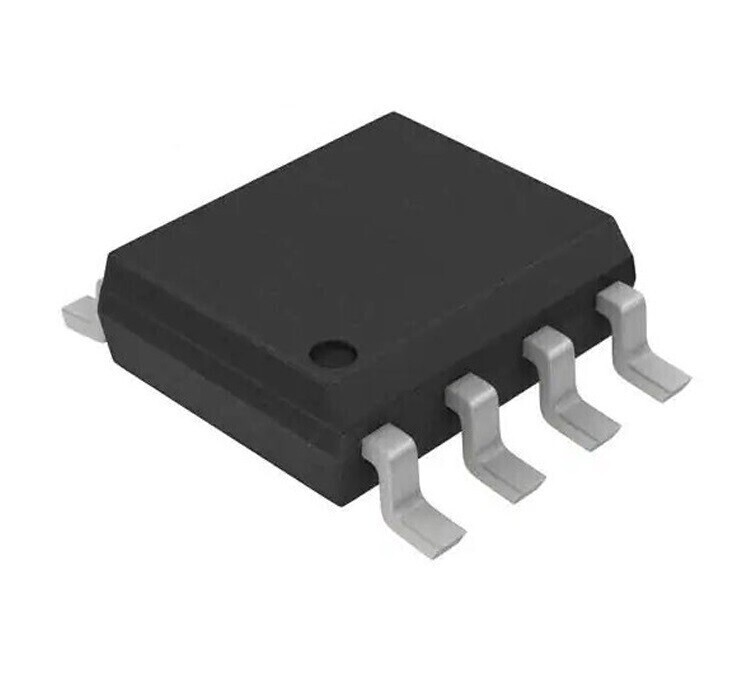

OP AMP, 36VIN, 4.5MHZ, 27.4V, 8SOIC; No. of Amplifiers:1 Amplifier; Bandwidth:4.5MHz; Slew Rate:9V/µs; Supply Voltage Range:4V to 36V; Amplifier Case Style:SOIC; No. of Pins:8Pins; Operating Temperature Min:-55°C; Operating Temperature Max:125°C; Product Range:-; Automotive Qualification Standard:-; RoHS Phthalates Compliant:To Be Advised; MSL:MSL 1 - Unlimited; SVHC:No SVHC (07-Jul-2017); Amplifer Supply Voltage:4V to 36V; No. of Amplifiers:1Amplifiers; Op Amp Type:BiMOS
Технические параметры
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -55 °C |
| Mounting Type | Surface Mount |
| Number of Channels per Chip | 1 |
| Package Type | SOIC |
| Pin Count | 8 |
| Power Supply Type | Dual, Single |
| Rail to Rail | No |
| Typical Dual Supply Voltage | ±12 V, ±15 V, ±3 V, ±5 V, ±9 V |
| Typical Gain Bandwidth Product | 3.7MHz |
| Typical Input Voltage Noise Density | 40nV/√Hz |
| Typical Single Supply Voltage | 5 → 28 V |
| Typical Slew Rate | 7V/µs |
| Typical Voltage Gain | 100 dB |
| Width | 4mm |
| Amplifier Type: | General Purpose Amplifier |
| Brand: | Renesas/Intersil |
| CMRR - Common Mode Rejection Ratio: | 70 dB |
| Dual Supply Voltage: | +/-3 V, +/-5 V, +/-9 V, +/-12 V, +/-15 V |
| en - Input Voltage Noise Density: | 40 nV/sqrt Hz |
| Factory Pack Quantity: Factory Pack Quantity: | 980 |
| GBP - Gain Bandwidth Product: | 4.5 MHz |
| Ib - Input Bias Current: | 40 pA |
| Manufacturer: | Renesas Electronics |
| Maximum Dual Supply Voltage: | +/-18 V |
| Maximum Operating Temperature: | +125 C |
| Minimum Dual Supply Voltage: | +/-2 V |
| Minimum Operating Temperature: | -55 C |
| Mounting Style: | SMD/SMT |
| Number of Channels: | 1 Channel |
| Operating Supply Current: | 1.6 mA |
| Operating Supply Voltage: | 4 V to 36 V, +/-2 V to+/-18 V |
| Output Current per Channel: | 40 mA |
| Package / Case: | SOIC-8 |
| Packaging: | Tube |
| Product Category: | Operational Amplifiers-Op Amps |
| Product Type: | Op Amps-Operational Amplifiers |
| Product: | Operational Amplifiers |
| PSRR - Power Supply Rejection Ratio: | 80 dB(Typ) |
| Series: | CA3140A |
| Shutdown: | No Shutdown |
| SR - Slew Rate: | 9 V/us |
| Subcategory: | Amplifier ICs |
| Supply Type: | Single, Dual |
| Supply Voltage - Max: | 36 V, +/-18 V |
| Supply Voltage - Min: | 4 V, +/-2 V |
| Technology: | BiCMOS |
| Voltage Gain dB: | 100 dB |
| Vos - Input Offset Voltage: | 5 mV |
