Описание

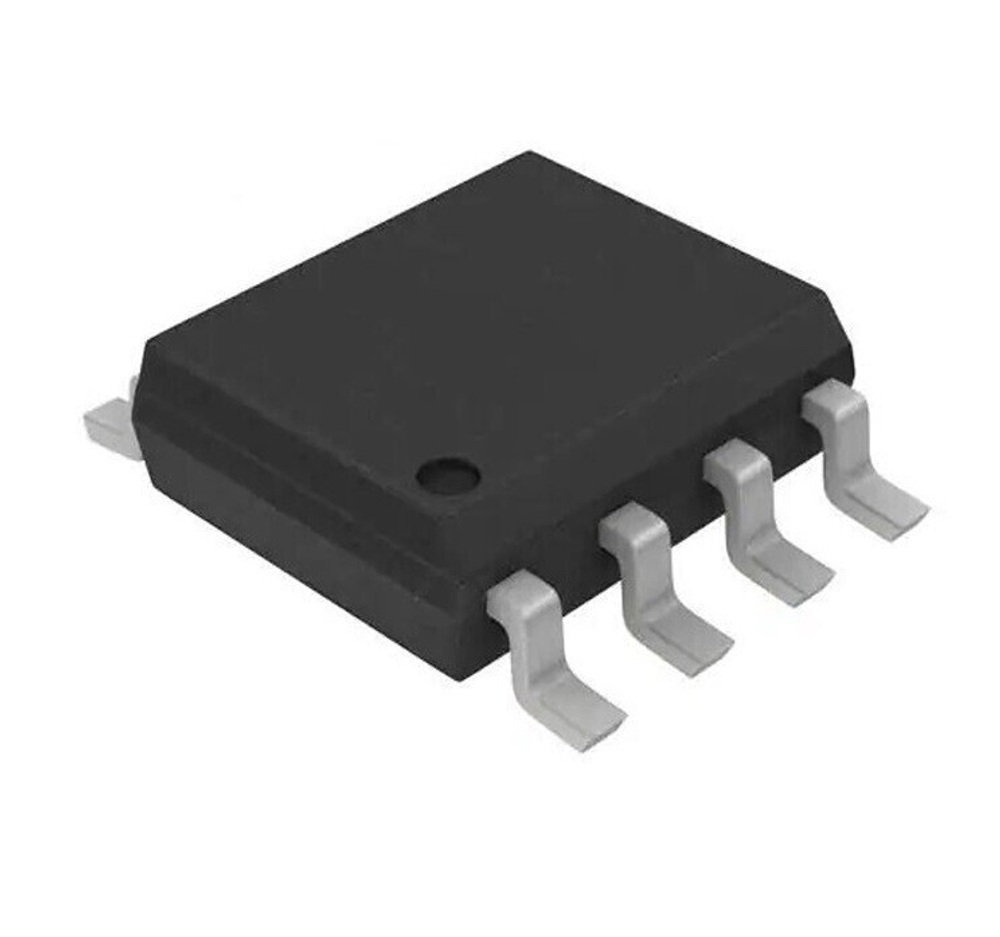

Драйвер дифференциальный низковольтная дифференциальная цепь одноканальный
Технические параметры
| Количество драйверов / приемников | 1/0 |
| Режим работы | - |
| Гистерезис приемника, мВ | - |
| Скорость передачи данных | 600 mbps |
| Напряжение питания, В | 3…3.6 |
| Рабочая температура,°C | -40…+85 |
| Корпус | SOIC-8(0.154 inch) |
| Differential Output Voltage | 0.45(mV) |
| Input Type | LVCMOS/LVTTL |
| Mounting | Surface Mount |
| Number of Elements | 1 |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Operating Supply Voltage (Typ) | 3.3(V) |
| Operating Temp Range | -40C to 85C |
| Operating Temperature (Max) | 85C |
| Operating Temperature (Min) | -40C |
| Operating Temperature Classification | INDUSTRIALC |
| Output Type | Driver |
| Package Type | SOIC N |
| Packaging | Tape and Reel |
| Pin Count | 8 |
| Power Dissipation | 23(TYP)(W) |
| Propagation Delay Time | 1.5(ns) |
| Rad Hardened | No |
| Transmission Data Rate | 75(MBps) |
| Brand: | Analog Devices |
| Data Rate: | 600 Mb/s |
| Factory Pack Quantity: Factory Pack Quantity: | 98 |
| Input Type: | LVCMOS, LVTTL |
| Manufacturer: | Analog Devices Inc. |
| Maximum Operating Temperature: | +85 C |
| Maximum Output Voltage: | 450 mV |
| Minimum Operating Temperature: | -40 C |
| Mounting Style: | SMD/SMT |
| Number of Drivers: | 1 Driver |
| Number of Receivers: | 1 Receiver |
| Operating Supply Current: | 7 mA |
| Operating Supply Voltage: | 3.3 V |
| Package / Case: | SOIC-8 |
| Packaging: | Tube |
| Product Category: | LVDS Interface IC |
| Product Type: | LVDS Interface IC |
| Propagation Delay Time: | 1.5 ns |
| Series: | ADN4661 |
| Subcategory: | Interface ICs |
| Supply Voltage - Max: | 3.6 V |
| Supply Voltage - Min: | 3 V |
| Type: | LVDS |
| Case/Package | SOIC |
| Data Rate | 600 Mbps |
| Interface | LVDS |
| Max Junction Temperature (Tj) | 150 °C |
| Max Operating Temperature | 85 °C |
| Max Supply Current | 10 mA |
| Max Supply Voltage | 3.6 V |
| Min Operating Temperature | -40 °C |
| Min Supply Voltage | 3 V |
| Mount | Surface Mount |
| Nominal Supply Current | 7 mA |
| Number of Elements | 1 |
| Number of Pins | 8 |
| Operating Supply Current | 7 mA |
| Operating Supply Voltage | 3.3 V |
| Propagation Delay | 1.5 ns |
| Turn-On Delay Time | 1.5 ns |
| Вес, г | 0.15 |
