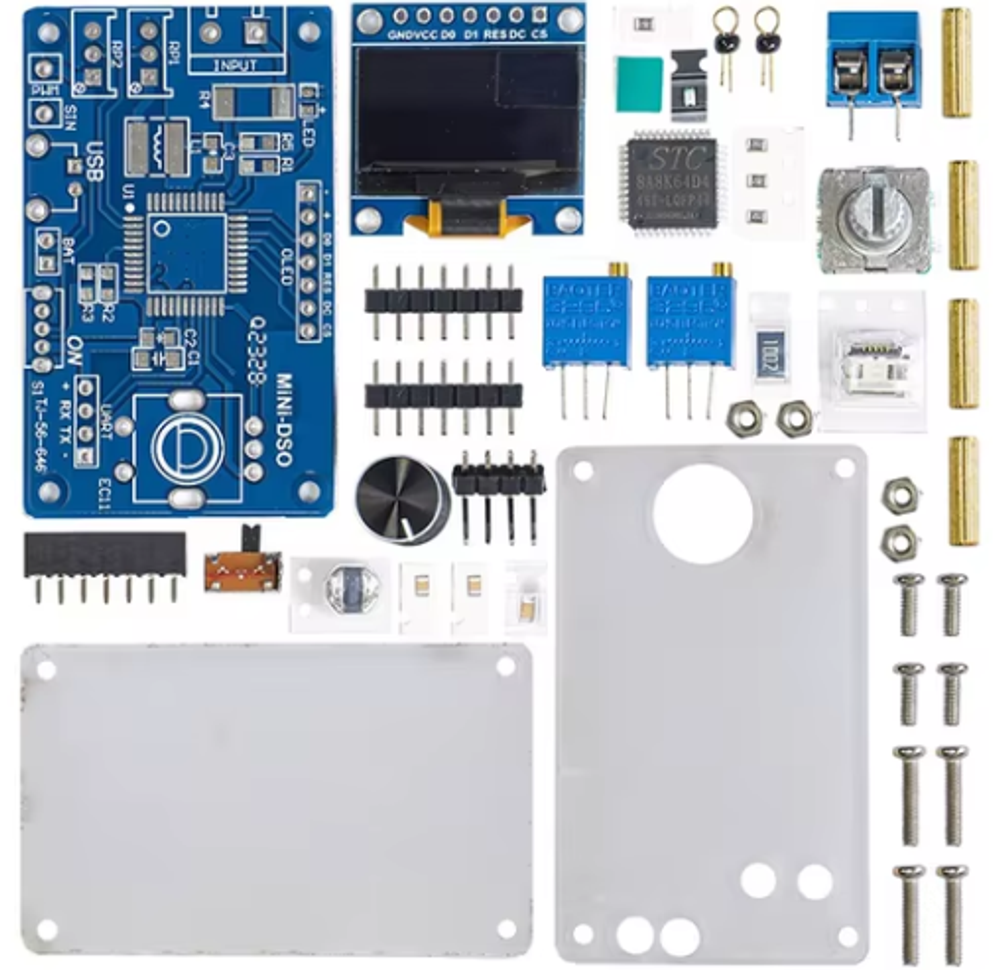

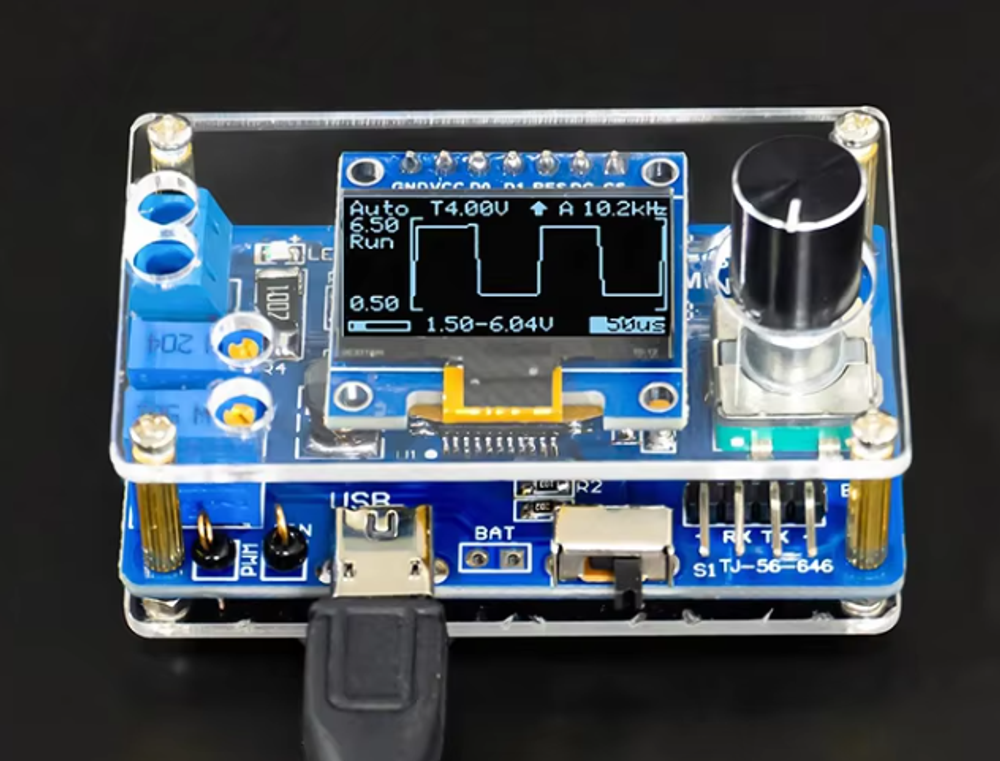

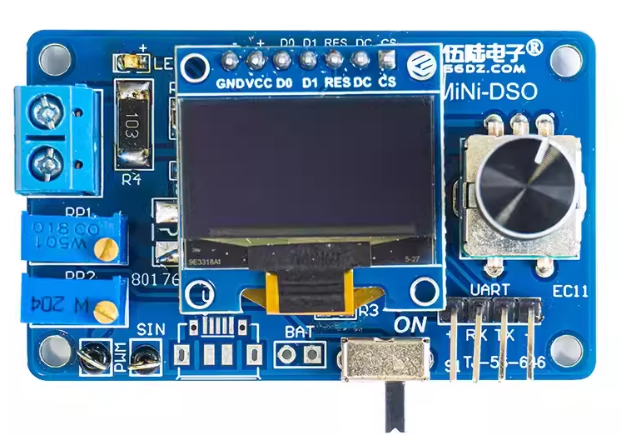

Product Name: MiNi-DSO Microcontroller Oscilloscope Kit
PCB size: 57*34mm
Working voltage: 4-5V
Microcontroller: STC8A8K64S4A12
Display: 0.96-inch OLED display-7P, 128*64 resolution
Number of channels: single channel
Sec/div: 500ms, 200ms, 100ms, 50ms, 20ms, 10ms, 5ms, 2ms, 1ms, 500us,
200us, 100us (100us is only available in automatic trigger mode)
Voltage range: 0-30V
Sampling level: 10kHz @100us/div
Trigger level: trigger voltage level.
Trigger slope: 1-rising edge, -falling edge trigger
Trigger mode: A-automatic mode, N-normal mode, S-single mode.
