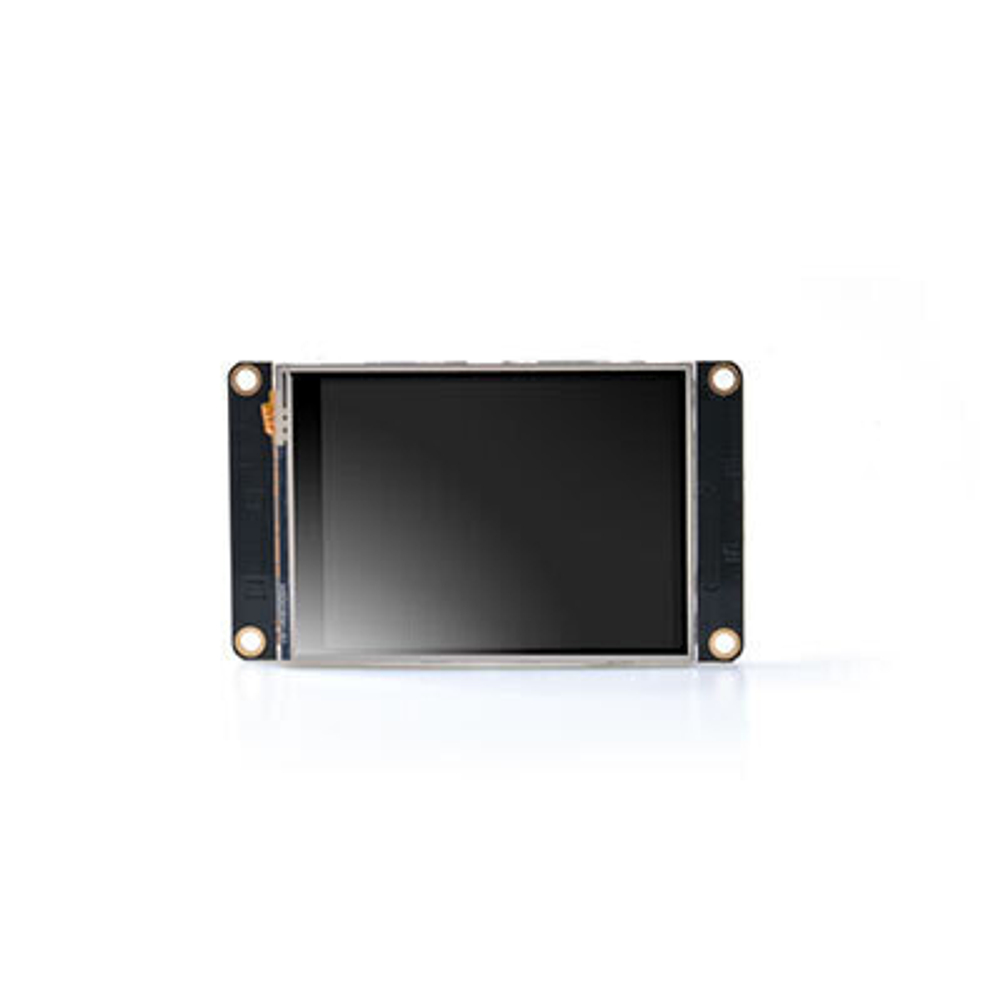

NX3224K028
Overview
Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or appliance. Nextion is mainly applied to IoT or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube. With the Nextion Editor software (Official Download), users are able to create and design their own interfaces for Nextion display.
The Nextion Enhanced series are more powerful compared to the Nextion Basic series. In addition to a faster MCU clock, the Enhanced series support: built-in RTC, 1K EEPROM for user data, 8 digital GPIO, and larger Flash capacity.
Package includes: Nextion Display, connecting wire, a power supply test board.
Note: the small power supply test board and connecting wire inside the package allow you to test if the electrical supply is enough or not. See the image below on how to use it.
Nextion Models
| Nextion Type | Enhanced Series |
| Nextion Models | NX3224K024_011N (N: No touch) |
| NX3224K024_011R (R: Resistive touchscreen) |
Specifications
| Data | Description | |
| Color | 64K 65536 colors | 16 bit 565, 5R-6G-5B |
| Layout size | 85(L)×49.8(W)×4.35(H) | NX3224K028_011N |
| 85(L)×49.8(W)×5.55(H) | NX3224K028_011R | |
| Active Area (A.A.) | 70.20mm(L)×49.80mm(W) | |
| Visual Area (V.A.) | 57.60mm(L)×43.20mm(W) | |
| Resolution | 320×240 pixel | Also can be set as 240×320 |
| Touch type | Resistive | |
| Touches | > 1 million | |
| Backlight | LED | |
| Backlight lifetime (Average) | >30,000 Hours | |
| Brightness | 200nit (NX3224K028_011N) | 0% to 100%, the interval of adjustment is 1% |
| 180 nit (NX3224K028_011R) | 0% to 100%, the interval of adjustment is 1% | |
| Weight | 32g (NX3224K028_011N) | |
| 39.5g (NX3224K028_011R) |
Electronic Characteristics
| Test Conditions | Min | Typical | Max | Unit | |
| Operating Voltage | 4.75 | 5 | 7 | V | |
| Operating Current | VCC=+5V, Brightness is 100% | – | 65 | – | mA |
| SLEEP Mode | – | 15 | – | mA | |
| Power supply recommend：5V, 500mA, DC | |||||
Working Environment & Reliability Parameter
| Test Conditions | Min | Typical | Max | Unit | |
| Working Temperature | 5V, Humidity 60% | -20 | 25 | 70 | °C |
| Storage Temperature | -30 | 25 | 85 | °C | |
| Working Humidity | 25°C | 10% | 60% | 90% | RH |
Interfaces Performance
| Test Conditions | Min | Typical | Max | Unit | |
| Serial Port Baudrate | Standard |
