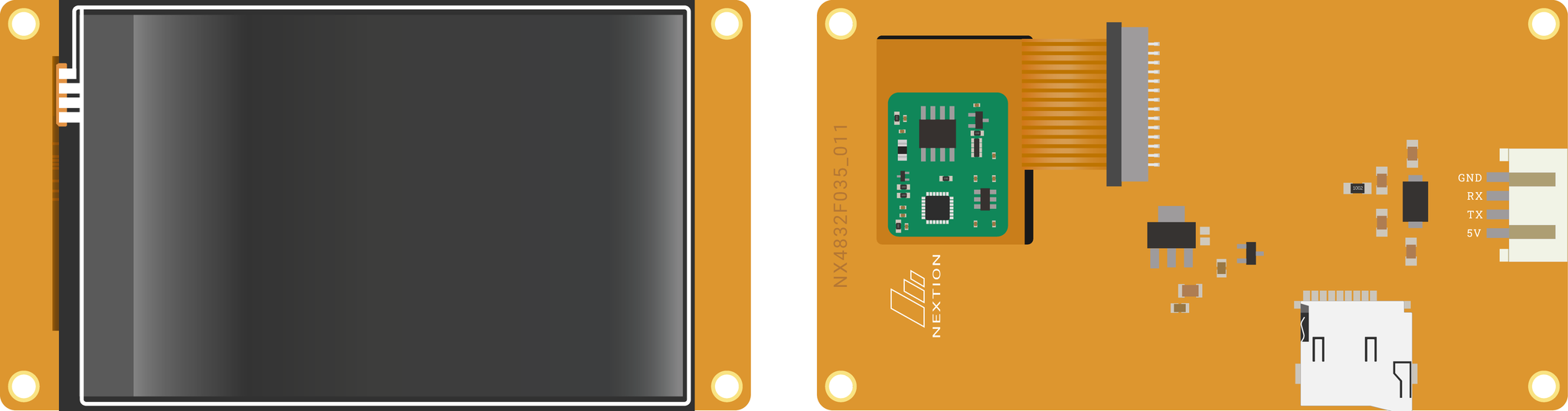

Nextion 3.5 сенсорный дисплей HMI (NX4832K035)

Остаток: 2 шт
Нет в наличии
Описание

NX4832K035

Overview

Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or appliance. Nextion is mainly applied to IoT or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube. With the Nextion Editor software (Official Download), users are able to create and design their own interfaces for Nextion display.

The Nextion Enhanced series are more powerful compared to the Nextion Basic series. In addition to a faster MCU clock, the Enhanced series support: built-in RTC, 1K EEPROM for user data, 8 digital GPIO, larger Flash capacity, and more RAM (for models 3.5″ and higher).

Package includes: Nextion Display, connecting wire, a power supply test board.
Note: the small power supply test board and connecting wire inside the package allow you to test if the electrical supply is enough or not. See the image below on how to use it.


Nextion Models

Nextion TypeEnhanced Series
Nextion ModelsNX4832K035_011N (N: No touch)
NX4832K035_011R (R: Resistive touchscreen)

Specifications

DataDescription
Color64K 65536 colors16 bit 565, 5R-6G-5B

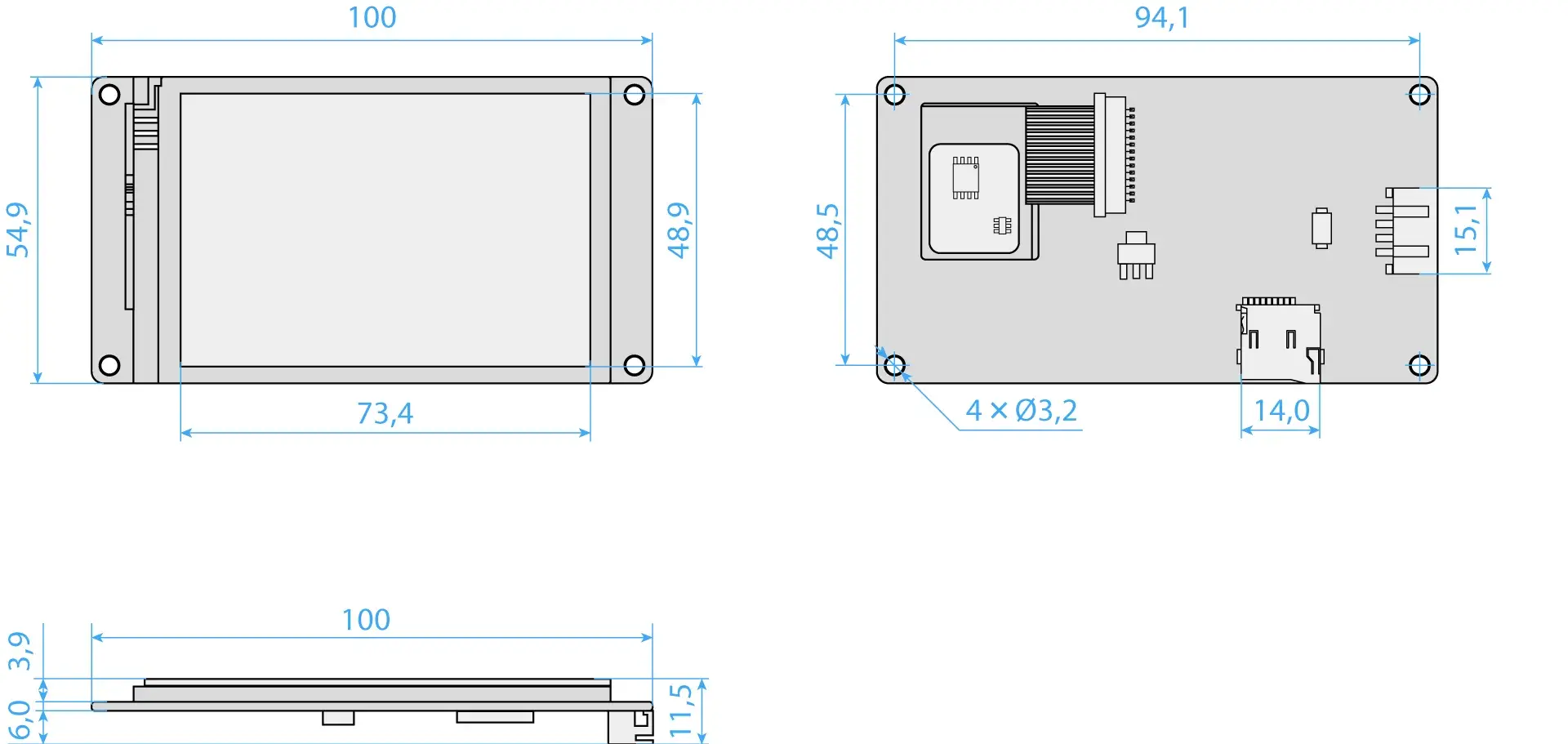

Layout size100.5(L)×54.94(W)×4.25(H)NX4832K035_011N
100.5(L)×54.94(W)×5.45(H)NX4832K035_011R
Active Area (A.A.)85.50mm(L)×54.94mm(W)
Visual Area (V.A.)73.44mm(L)×48.96mm(W)
Resolution480×320 pixelAlso can be set as 320×480
Touch typeResistive
Touches> 1 million
BacklightLED
Backlight lifetime (Average)>30,000 Hours
Brightness 200nit (NX4832K035_011N)0% to 100%, the interval of adjustment is 1%
180 nit (NX4832K035_011R)0% to 100%, the interval of adjustment is 1%
Weight38.2g (NX4832K035_011N)
48.2g (NX4832K035_011R)

Electronic Characteristics

Test ConditionsMinTypicalMaxUnit
Operating Voltage4.7557V
Operating CurrentVCC=+5V, Brightness is 100%145mA
SLEEP Mode15mA
Power supply recommend:5V, 500mA, DC

Working Environment & Reliability Parameter

Test ConditionsMinTypicalMaxUnit
Working Temperature5V, Humidity 60%-202570°C
Storage Temperature-302585°C
Working Humidity25°C10%60%90%RH

Interfaces Performance
